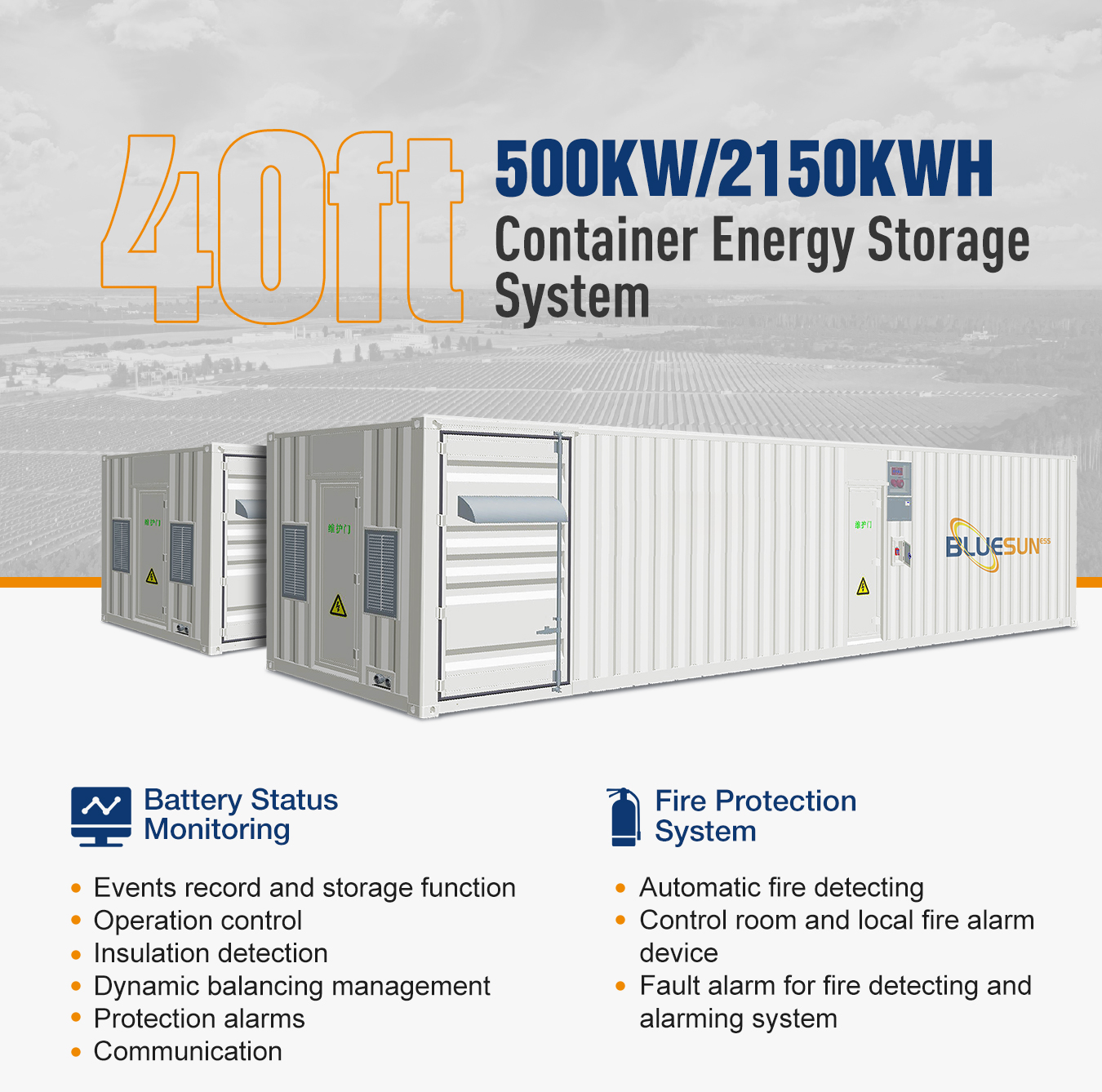

Bluesun 40FT Container Solar System 500KW 2150KWH Energy Storage System

ltem

Quantity

Description

PV

BSM565M10-72HPH

960

12 pieces/string;A total of 80 strings;
A total of 542.4kWp

Battery 2150.4KWH
(1720.32KWH available at
80%DOD)Backup

BAT-Conbiner box 1500V-1500A

1

For combination of multiple battery racks

BLUESUN-51.2V 280AH moudle

150

Battery With BMU module 51.2V 280AH Capacity 14.3kWh

BIUESUN-HV-Controller1500V 300A

10

High Voltage Controller Box

PV-Combiner Box

8 Inputs 1 Output

10

For combination of multiple PV module strings

PBD250

2

250kW solar charge controller

PCS500

1

250kW battery inverter

Isolation Transformer 500

1

500KVA Isolation Transformer

Bypass 500

1

Switch between on-grid and off-grid

EnerLog

1

Monitoring datalogger

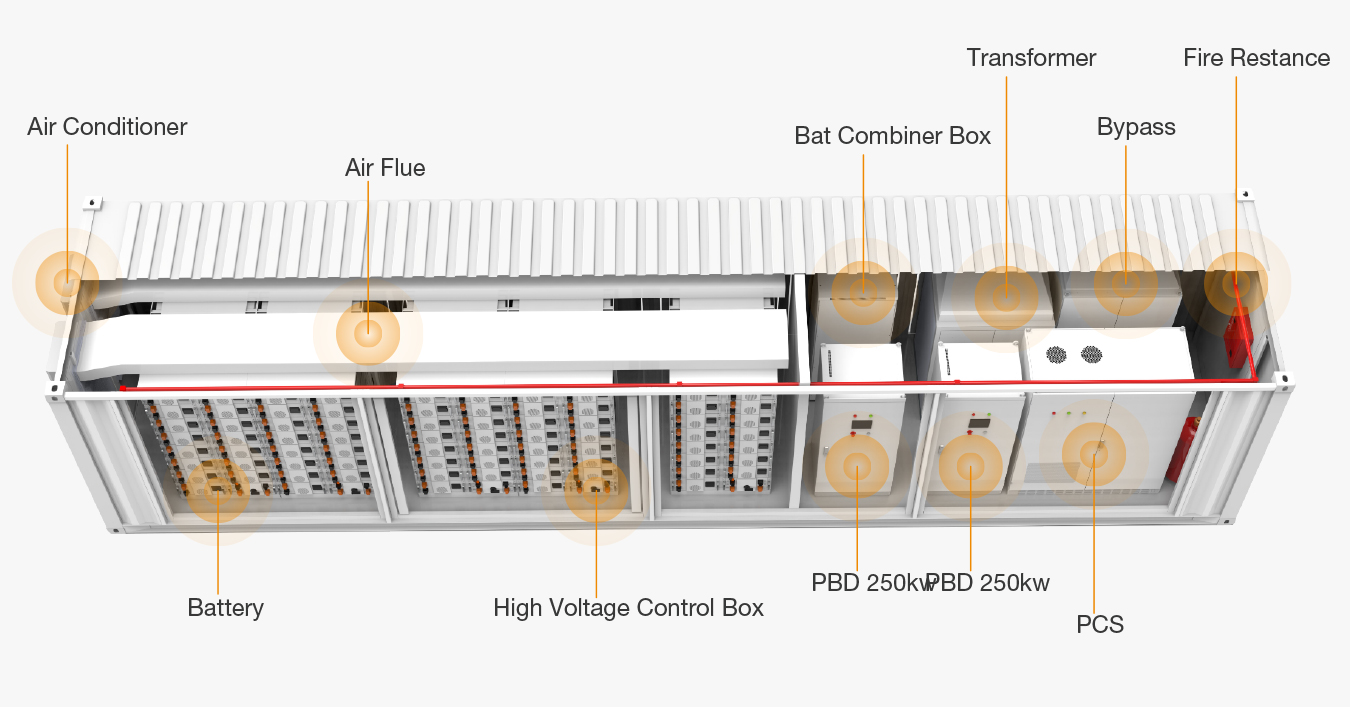

40FT Container

1

For outdoor installation,IP54,including lighting
fire-resitance system,battery rack,air conditioner
