Commercial Inverters

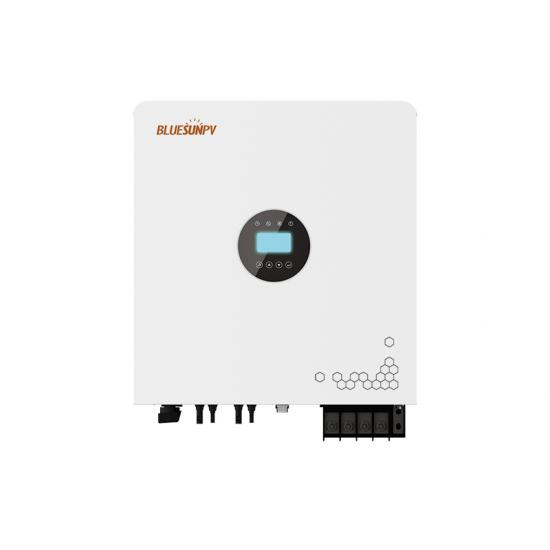

BSM50K-B 50KW Three Phase 2 MPPTs 400V(380V optional)

Bluesun 50KW Solar Inverter Smart Solar Panel Inverter For Commercial

  • Model:

    BSM50K-B
  • Type:

    PV String Inverters
  • Max.Power:

    50KW
  • Output Voltage:

    400V
  • Certificate:

    CE/TUV
  • Lead Time:

    15 Days
  • Payment:

    T/T, L/C,Western Union
  • Warranty:

    5 Years (10 Years Option)

Product Description

1.High Efficiency
*Max. DC voltage 1100V.      *Max. efficiency 99.03%.
*High precision & intelligent string detection.

2.Reliable
*Built-in AC and DC SPD protection module and provide full range of lightning protection.
*Smart air cooling.      *Night PID module.      *Compatible with 182/210 PV panels

3.Friendly
*100Pn under 45℃ Active and reactive power regulation.
*Support mobile phone APP and check the status information of status.



Technical Parameters

Model

BSM6K-B

BSM10K-B

BSM15K-B

BSM30K-B

BSM50K-B

BSM100K-B

DC Input

Max. DC Voltage

550V

1100V

Starting Voltage

140V

200V

MPPT Voltage Range

90-500V

200V-1000V

MPPT Range Full Load

240-480V

370V-850V

450V-850V

425V-850V

450V-850V

550V-850V

Max. Input Current of Each MPPT

13A/13A

20A / 20A

26A  /20A

40A  /40A

60A  /60A

65A  / 65A  / 65A  / 65A

Max. short-circuit current

19A/19A

30A / 30A

39A / 30A

60A  /60A

90A /90A

100A  / 100A  / 100A  / 100A

Number of DC Inputs

1 /1

1 /1

2 /1

3 /3

5 /4

5 / 5 / 5 /5

MPPT Number

2

2

2



2

4

AC Output

Rated Output Power

6kW

10kW

15kW

30kW

50kW

100kW

Max. Active Power (cosθ=1)

6.6kW

11kW

16.5kW

33kW

55kW

110kW

Rated Output Voltage

220V/230V(Mono Phase)

400V (Three Phase) (380V optional)

Operating Voltage Range

172.5V-276V

300V-520V

Rated Output Current

 /

14.5A

21.7A

43.5A

72.2A

144A

Max. Output Current

30A

16.0A

23.9A

47.6A

79.4A

1583.8A

Rated Grid Frequency

50Hz / 60Hz

50Hz / 60Hz

Power Factor

0.8 (Leading) ~ 0.8 (Lagging)

THD

<3%

<3%

<3%

 <3%

<3%

<3%

System Parameters

Max.Efficiency

98.55%

98.60%

98.61%

99.00%

99.03%

99.00%

European Effciency

98.00%

98.40%

98.40%

98.80%

98.51%

98.52%

AC/DC SPD

Support

Insulation Impedance Detection

Support

Residual Leakage Current Detection

Support

PV String Fault Detection

Support

Output Overcurrent Protection

Support

Protection Degree

IP65

Operating Temperature Range

-40℃~ +60℃

Cooling System

Natural Cooling

Standby Power Consumption

<1W

<1W

<1W

<1W

<1W

<5W

Topology Structure

Transformerless

Operating Altitude

4000m (Derating above 3000m)

5000m (Derating above 3000m)

Display

LED Indicator + APP

Communication

WiFi / GPRS / 4G

RS485 / WiFi / GPRS / 4G

Mechanical Parameters

Dimensions (W*H*D)

325*380*177mm

380*400*247mm

380*400*247mm

380*450*247mm

520*520*265mm

800*680*330mm

Weight

≤14kg

≤22kg

≤22kg

≤35kg

≤44kg

≤89kg
