HEX4 Series

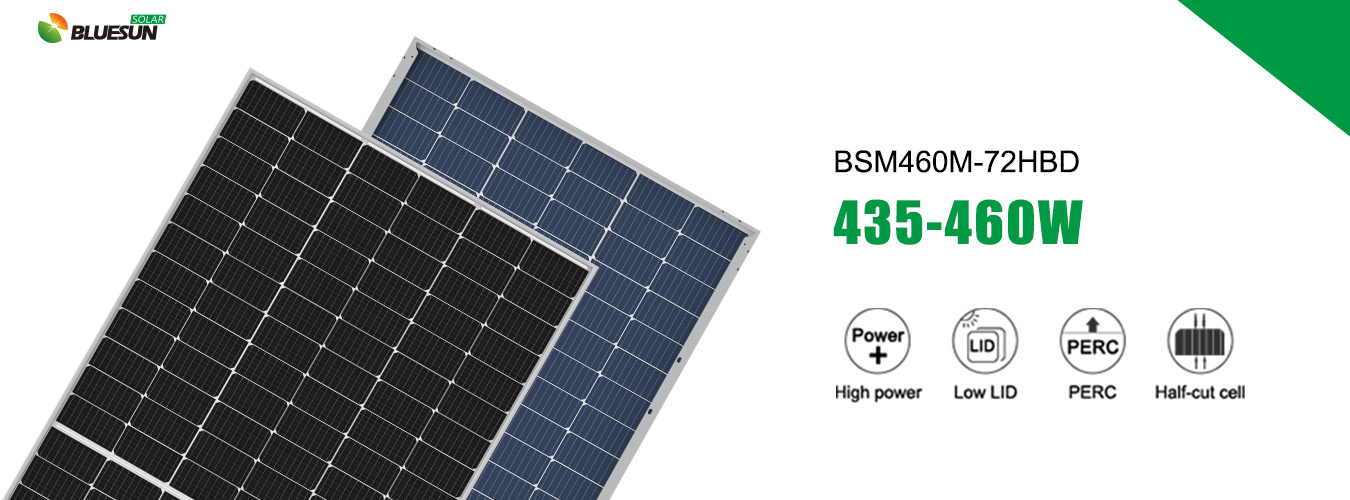

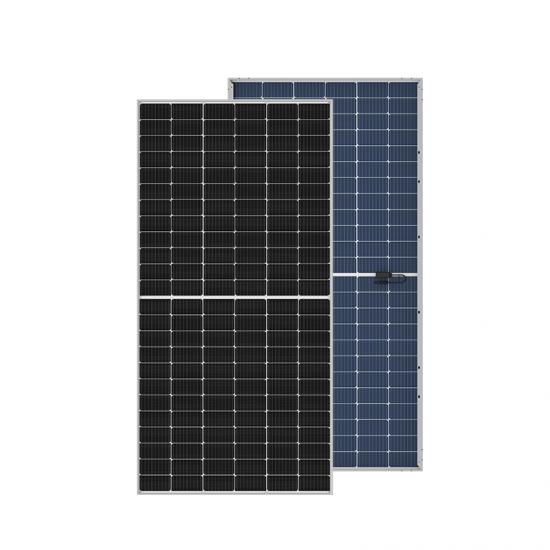

HEX4 Mono Half Cell 455W 144cells Bifacial Solar Panel

BLUESUN US Stock 166MM Solar Cell Solar Panel 450 Watt 455 Watt Bifacial Solar Panels For Home

  • Model:

    BSM455M-72HBD
  • Solar Cell:

    166*166mm
  • Number Of Cells:

    144 (6*24)
  • Power Range:

    440-460W
  • Size:

    2094*1038*30MM
  • Certificate:

    CE/TUV/UL/CEC
  • Lead Time:

    15 Days
  • Payment:

    T/T, L/C,Western Union
  • Warranty:

    30 Years

Product Description

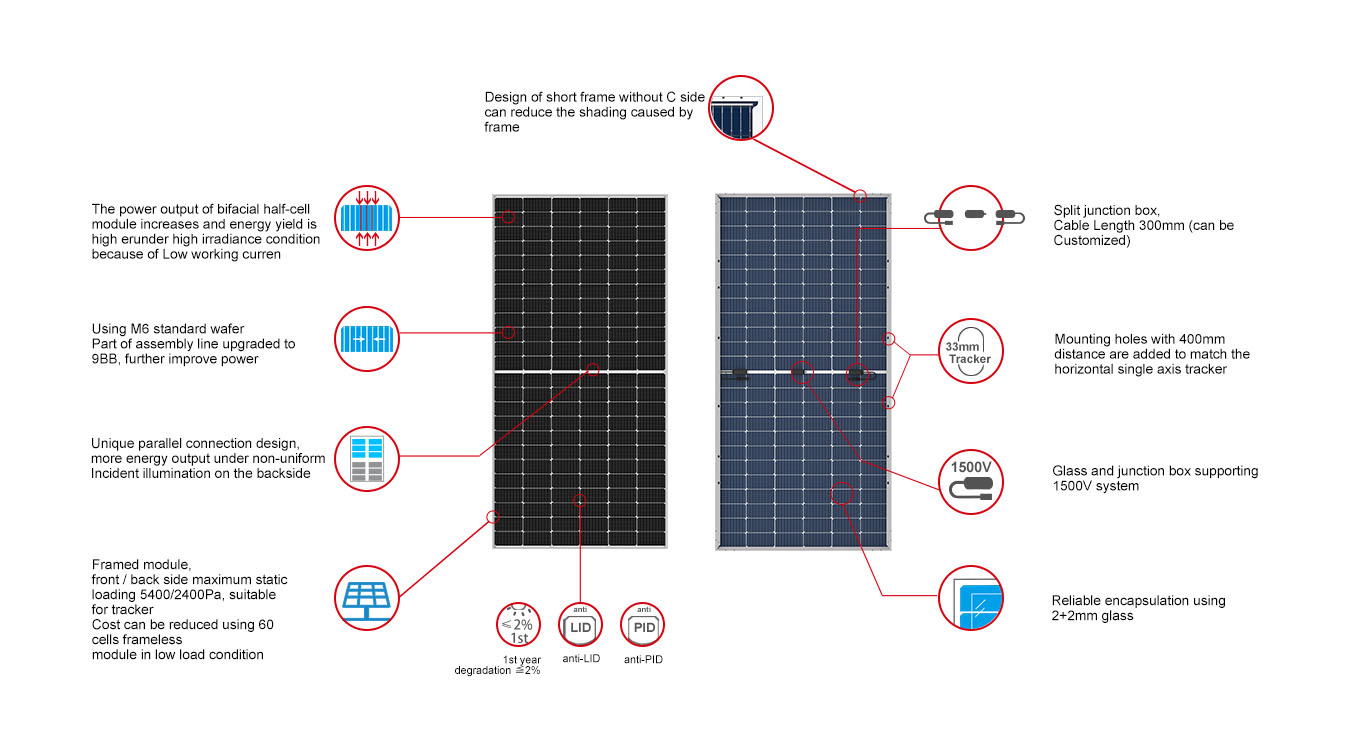

Bluesun HEX4 series monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 440-460w.Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.


*Suitable for ground power plants and distributed projects    *Advanced module technology delivers superior module efficiency

*Excellent outdoor power generation performance                 *High module quality ensures long-term reliability



                 Module Type

           BSM440M-72HBD

           BSM445M-72HBD

           BSM450M-72HBD

           BSM455M-72HBD

           BSM460M-72HBD



STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power(Pmax/W)

440

327

445

330

450

334

455

337

460

341

Operating Voltage(Vmpp/V)

41.6

38.9

41.8

39.1

42.0

39.3

42.2

39.4

42.4

39.6

Operating Current(Impp/A)

10.58

8.41

10.65

8.47

10.72

8.52

10.79

8.57

10.86

8.62

Open-Circuit Voltage(Voc/V)

50.0

46.8

50.2

46.9

50.4

47.1

50.6

47.3

50.8

47.5

Short-Circuit Current(Isc/A)

11.22

9.04

11.29

9.10

11.36

9.16

11.43

9.21

11.50

9.27

Module Efficiency(%)

20.2

20.5

20.7

20.9

21.2

STC: Irradiance 1000W/,Cell Temperature 25°C,Air Mass AM1.5   NMOT: Irradiance at 800W/,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
