HEX5 Series

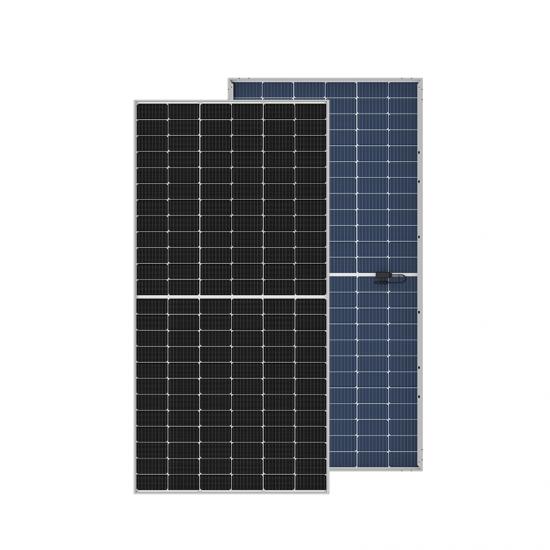

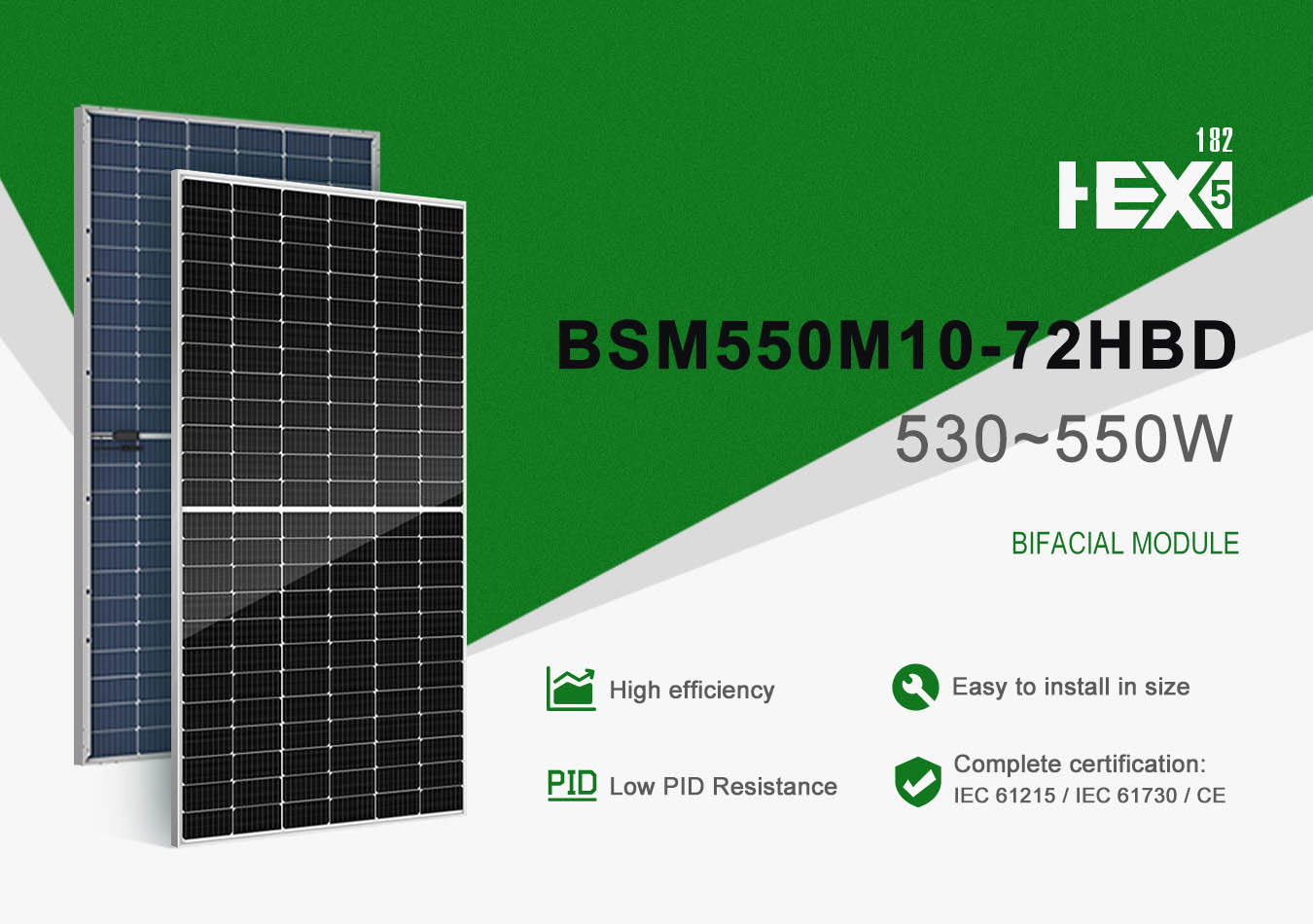

HEX5 Mono Half Cell 550W 144cells Bifacial Solar Panel

Bluesun High Efficiency Bifacial Solar Panels 540W 550W PV Panels For Solar Energy System

  • Model:

    BSM550M10-72HBD
  • Solar Cell:

    182*182mm
  • Number Of Cells:

    144 (6*24)
  • Power Range:

    530-550W
  • Size:

    2279*1134*35MM
  • Certificate:

    CE/TUV/UL/CEC
  • Lead Time:

    15 Days
  • Payment:

    T/T, L/C,Western Union
  • Warranty:

    30 Years

Product Description


Bluesun HEX5 series monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 530-550w.Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.


*High module conversion efficiency       *Withstanding harsh environment

*Excellent Anti-PID performance            *Excellent weak light performance



            Module Type

          BSM530M10-72HBD

          BSM535M10-72HBD

          BSM540M10-72HBD

          BSM545M10-72HBD

          BSM550M10-72HBD



STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power(Pmax/W)

530

395

535

398

540

402

545

406

550

410

Operating Voltage(Vmpp/V)

41.32

38.6

41.48

38.7

41.64

38.8

41.80

39.0

41.96

39.1

Operating Current(Impp/A)

12.83

10.24

12.90

10.30

12.97

10.36

13.04

10.41

13.11

10.47

Open-Circuit Voltage(Voc/V)

49.32

46.4

49.46

46.50

49.60

46.7

49.76

46.8

49.92

47.0

Short-Circuit Current(Isc/A)

13.72

11.06

13.79

11.12

13.86

11.17

13.93

11.23

14.00

11.28

Module Efficiency(%)

20.5

20.7

20.9

21.1

21.3


                              Electrical characteristics with different rear side power gain (refer to 530W front)

          Pmax gain

          Pmax/W

          Vmpp/V

          Impp/A

          Voc/V

          Isc/A

5%

557

41.32

13.47

49.32

14.41

10%

583

41.32

14.11

49.32

15.09

15%

610

41.32

14.75

49.32

15.78

20%

636

41.32

15.40

49.32

16.46

25%

663

41.32

16.04

49.32

17.15

STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5   NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
