HEX5 Series

HEX5 Mono Half Cell 565W 144cells Solar Panel

Bluesun Wholesale Solar Photovoltaic Panels 560W 565W Solar Panels Manufacture

Model:
BSM560M10-72HPH
Solar Cell:
182*182mm
Number Of Cells:
144 (6*24)
Power Range:
540-560W
Size:

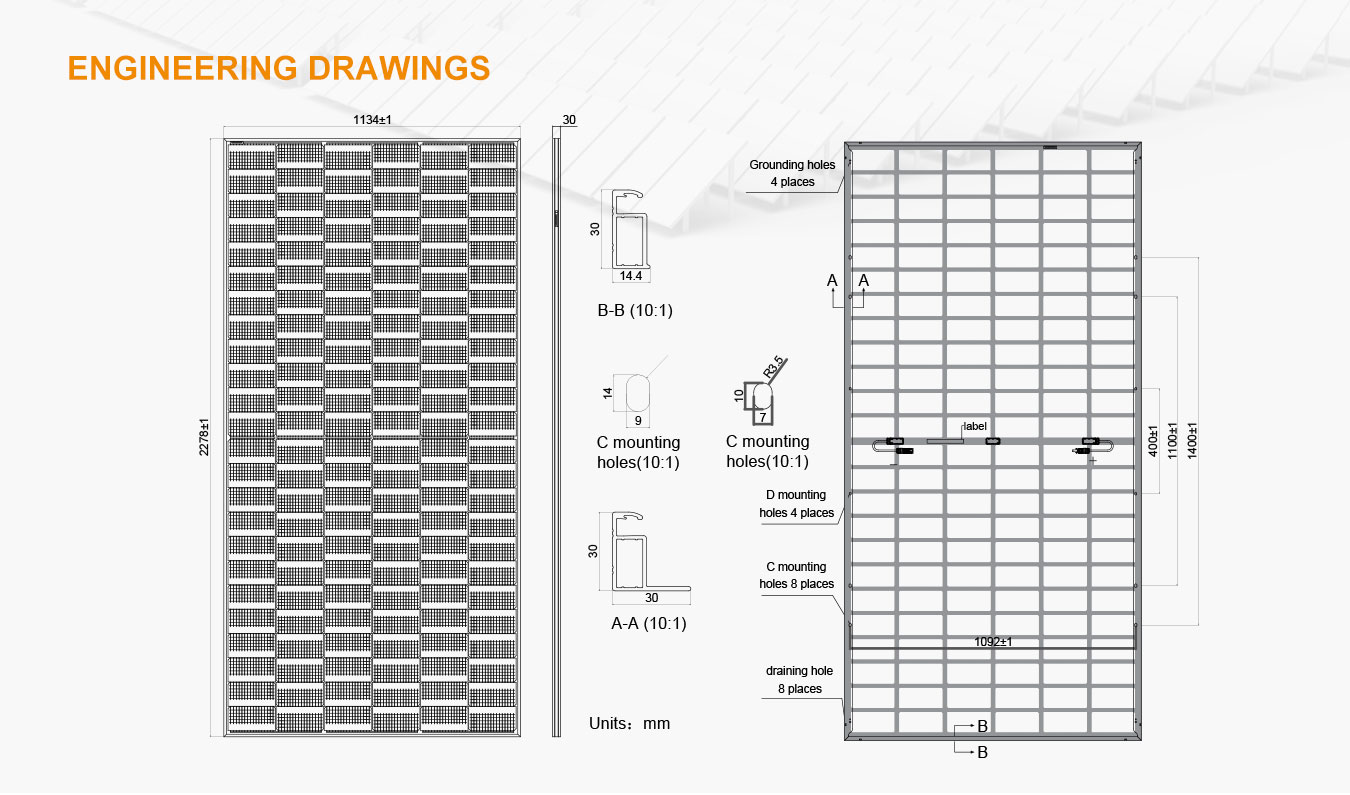

2278*1134*35MM
Certificate:
CE/TUV
Lead Time:
15 Days
Payment:
T/T, L/C,Western Union
Warranty:
25 Years

Inquiry now

Bluesun HEX5 series monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 540-565w.Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.

*High module conversion efficiency *Withstanding harsh environment

*Excellent Anti-PID performance *Excellent weak light performance

Module Type	BSM540M10-72HPH		BSM545M10-72HPH		BSM550M10-72HPH		BSM555M10-72HPH		BSM560M10-72HPH		BSM565M10-72HPH
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power(Pmax/W)	540	402	545	406	550	410	555	413	560	416	565	419
Operating Voltage(Vmpp/V)	41.96	38.29	42.06	38.35	42.16	38.43	42.24	38.52	42.33	38.59	42.42	38.66
Operating Current(Impp/A)	12.87	10.50	12.96	10.58	13.05	10.66	13.14	10.73	13.23	10.80	13.32	10.88
Open-Circuit Voltage(Voc/V)	49.60	46.12	49.70	46.21	49.80	46.31	49.90	46.40	50.00	46.49	50.10	46.58
Short-Circuit Current(Isc/A)	13.74	11.10	13.84	11.18	13.94	11.27	14.04	11.34	14.14	11.42	14.24	11.50
Module Efficiency(%)	20.90		21.10		21.30		21.49		21.68		21.87
STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
