HEX5 Series

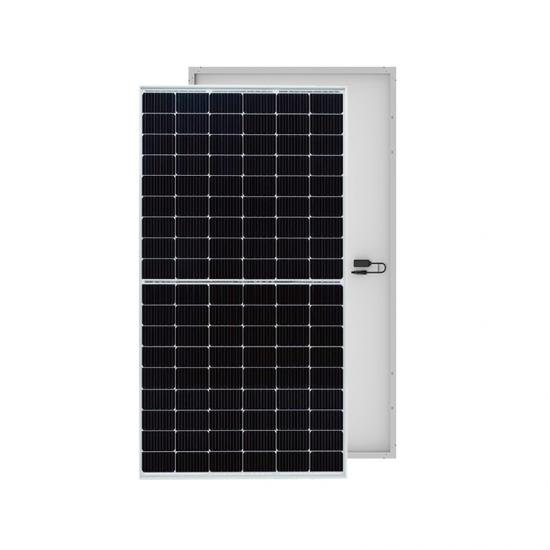

HEX5 Mono Half Cell 425W 108cells Solar Panel

Bluesun CE TUV Certificated Monocrystalline Solar Panels 182MM 425W Solar Panel For House

  • Model:

    BSM425G12-54HPH
  • Solar Cell:

    182*182mm
  • Number Of Cells:

    108 (6*18)
  • Power Range:

    405-425W
  • Size:

    1722*1134*30MM
  • Certificate:

    CE/TUV/UL/CEC
  • Lead Time:

    15 Days
  • Payment:

    T/T, L/C,Western Union
  • Warranty:

    25 Years

Bluesun HEX5 series monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 405-425w. Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.


*High module conversion efficiency       *Withstanding harsh environment

*Excellent Anti-PID performance            *Excellent weak light performance



            Module Type

           BSM405G12-54HPH

            BSM410G12-54HPH

            BSM415G12-54HPH

            BSM420G12-54HPH

            BSM425G12-54HPH



STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

STC

NMOT

Maximum Power(Pmax/W)

405

302

410

306

415

310

420

314

425

318

Operating Voltage(Vmpp/V)

31.24

29.2

31.43

29.3

31.64

29.6

31.83

29.8

32.03

30.0

Operating Current(Impp/A)

12.97

10.36

13.05

10.42

13.13

10.48

13.21

10.54

13.29

10.60

Open-Circuit Voltage(Voc/V)

37.25

35.10

37.50

35.30

37.75

35.50

38.00

35.70

38.25

35.90

Short-Circuit Current(Isc/A)

13.86

11.17

13.94

11.24

14.02

11.30

14.10

11.36

14.18

11.42

Module Efficiency(%)

20.7

21.0

21.3

21.5

21.7

STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5   NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s

Bluesun Solar PV modules have been certifited by UL, TUV, CE, IEC, CEC, MCS, etc.
